One Two Piece Oil Rings. For the way the piston ring is not all the same.
Follow along as we install our properly gapped piston rings on our new weisco piston.
How to install rings on a piston. In this video I show and explain the easiest way to install your piston rings with out breaking them. How to Install Piston Rings Three Piece Flex Vent. First place the spacer in the grove.
Then spiral the first rail into the groove below the spacer. One Two Piece Oil Rings. Using a proper ring installation tool open the oil ring just enough to allow the ring to go.
Installing Piston Rings on the piston of a 4-stroke engine is very important task because a slight error can lead to leakage of compressed gases and hence re. If there is a dot on the top ring install with the dot to the top of the piston. If there is no dot but there is a chamfer on the inside diameter install the chamfer to the top of the piston.
If there is no dot or chamfer on the ring it is symmetrical and can be installed in the groove either way. You never want to spiral the compression rings as they can distort and then not function properly. After installing the oil control ring you will install the 2 nd ring into the 2 nd groove using a piston ring installation tool making sure that the dottop mark is facing towards the top of the piston.
Spread the ring far enough apart to go over and not scratch the crown of the piston but not too far to damage the ring. For the oil rings take out the rings marked 3 which are the rails and flex vents. You will have twice as many rails as you have flex vents.

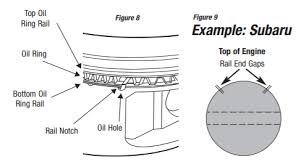

The first step is to place the spacer in the groove. Then spiral the first rail into the groove below the spacer followed by the remaining rail into the groove above the spacer. Rings with a groove in the outside diameter and a pip mark or dot on the side must be installed with the groove toward the bottom of the piston and pip mark towards the top of the piston.
It is a good idea after installing all rings on the pistons to recheck each ring on each piston for correct installation. Now its very important how you install the Rings. Otherwise you might be burning oil on you have good compressed now.
This is the font of the ng okay right here and usually when you take it apart to check out the pistons you have a dollar or something like that. Memorize where the dog is but the stamp on this one always face forward on. How to Install a 2 Stroke Piston Ring Quick Tip.
How to Install a 2 Stroke Piston Ring Quick Tip. The vid does not co. Ring side clearance is the space between the pistons ring land and the ring itself.
You dont have to install the ring on the piston to check side clearance you can just slip the ring in the groove and measure the clearance with a feeler gauge. While the ring is positioned in the groove check to make sure the ring width itself isnt deeper than the groove. This is known as backspacing.
Follow along as we install our properly gapped piston rings on our new weisco piston. Please comment with any questions. Thanks for watching and as always pl.
The installation of piston rings is a critical step that really takes both artwork and science to end up with a combination that seals the combustion pressure above the piston scrapes the oil off. For reference rings are typically gapped as follows. Top Ring 0045 0050 per inch of bore.
Second Ring 0050 -0055. Oil Rings Actual gap 015-050. Step 4 Install rings on piston.
Starting with the oil rings install each ring on piston using the following orientation. The dot or marking on each ring always faces up. In this video I show how to install a piston ring 4 stroke motorcycle or car based on all types of vehicles.
