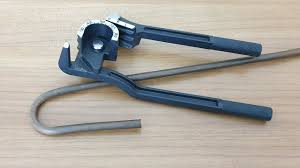

The image shows a pipe bender in operation. Be sure to leave the appropriate amount past the arrow on the bending shoe.
The top of the pipe should come through the bender so your foot should be able to steady it as well.
How to use pipe bender. Choose a die according to the size of the pipe that you wish to bend. Remove the die pivot pin. Insert the die into the die.
How To Bend Conduit Pipe with a Bender Tools Supplies You Need. When you use a bender with indicators and degree markers - like the ones from Klein Tools or. Making Back to Back Bends.
Measure the distance between the objects often walls or joists where the back to back bend. Choose the bender or appropriate die size based on the size of pipe to be bent. Set the devices adjustment dial based on the desired radius and overall number of degrees required in the bend for.
Swing up one of the tube bending arms to place the tube in the die keeping the reference marks. Learn how to use a hand tube bender to accurately and efficiently make 90 and 180 bends in tubing. Swagelok hand tube benders provide consistent high-qua.
In this video I show you how I turned my pipe bender into a tube bender. I will show you how to bend tubing with this do it yourself tube bender and you can. I demonstrate some basics about bending cheap electrical conduit and make a stand for my homemade bbg smokerElectrical conduit can have many uses other than.
Httpsgoogl1m56i5Heres a quick video that shows what you need to know to bend copper pipe with a bending spring. Springs are cheap an. Pack Your Pipe The first thing to do is to plug one end of the pipe.
I used a small carriage bolt that fit snugly in the end. The next step is to fill the pipe with sand. Bending starts with knowing the properties of the tube or pipe youre working with.
Pipe usually used to transport fluid or air is specified by its nominal pipe size see Figure 1. But when youre specifying a bending machine the centerline radius the outside diameter and wall thickness are critical variables. To begin with determine the size of the pipe to be bended and then select the die based on the size.
Now remove its pivot pin and install the die into the die slot properly. Use the pivot pin to secure the die in its place. Once this is done make sure that the die is installed properly.
You will have to swing up one of the two bending arms to insert the tube into the bending die while ensuring that you keep your reference marks visible at all times. Once the tube is inserted you can typically lower a second arm with a latch mechanism to hold the tubing in place while allowing for minor adjustments to be made. The Easy to Use Pipe Bender A compression pipe bender is an extremely powerful and versatile tool but many who have not used one dont fully appreciate how easy it is to use.
When we get people to do their first bend intimidation tends to fade away and enthusiasm to do more takes over. Slide the conduit into the bender. Be sure to leave the appropriate amount past the arrow on the bending shoe.
Set the conduit on a level firm ground and place your foot firmly on top of the foot of the bender. The top of the pipe should come through the bender so your foot should be able to steady it as well. Also an EMT bender can be used to ben d small degree bends or kicks in PVC.
Use an EMT bender to bend 30 kick in the PVC conduit by bending it to 60 and then the conduit will spring back to 30. This will only work on ½ or ¾ PVC and only for small bends but it is fast and pretty acc urate. The image shows a pipe bender in operation.
We have left bits out so you can see how it works. The handles 2 are opened wide which allows the hook 1 and the stay 3 to be in a straight line. The copper pipe is then placed under the hook across the top of the wheel former 5 and under the stay.
